PRODUCT OVERVIEW:

• “Through-The-Pump” foam system for smaller portable water pumps.
• Like the larger 4171, the unit is mounted between the discharge and suction side of a pump.
• The 4072KIT comes with two 1 ½” NPSH cast aluminum swivel tees.
• Set for preset eduction ratios of: OFF .2%, .5%, .7% and 1%.
• The 4072 is available for flow rates of: 15, 30, 50 and 70 GPM. – Please specify GPM rate when ordering.

Other Info:

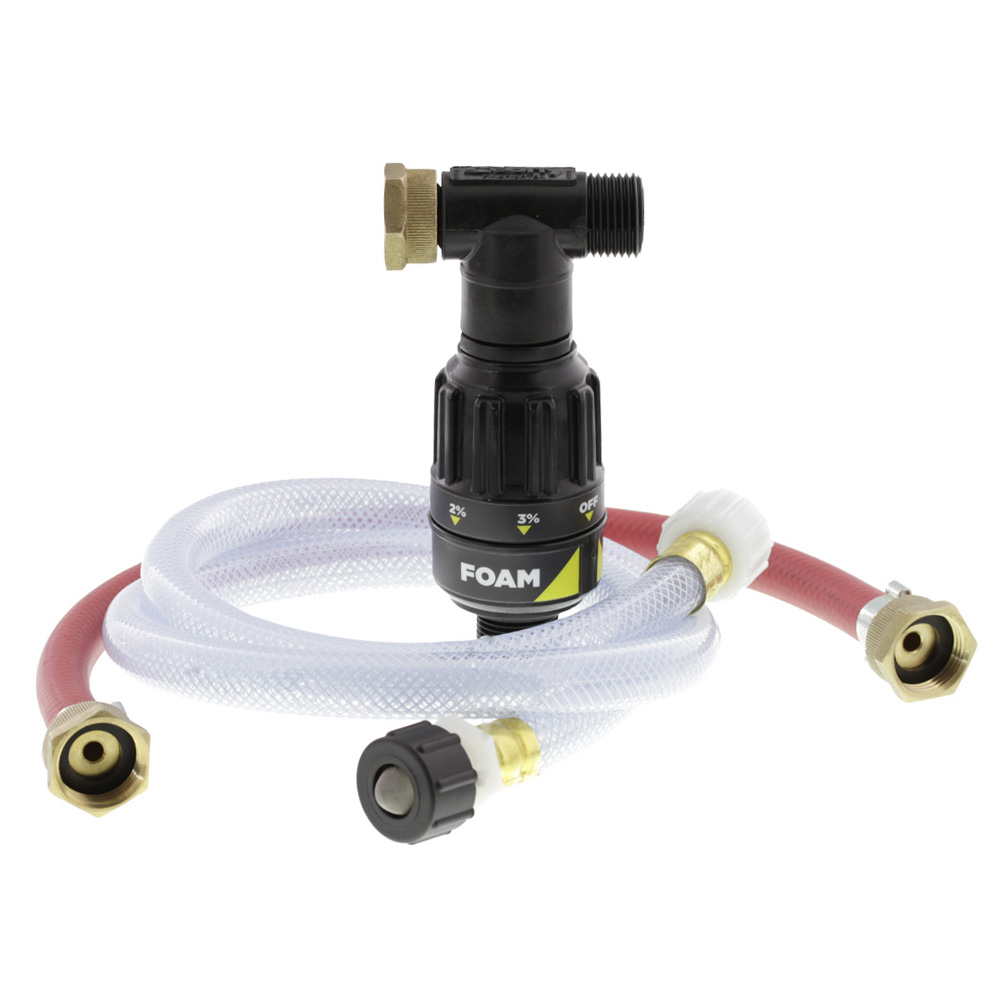

4072-15 – 15 GPM Mini Foam Eductor, with pressure & foam pickup hoses
4072-30 – 30 GPM Mini Foam Eductor, with pressure & foam pickup hoses
4072-50 – 50 GPM Mini Foam Eductor, with pressure & foam pickup hoses
4072-70 – 70 GPM Mini Foam Eductor, with pressure & foam pickup hoses

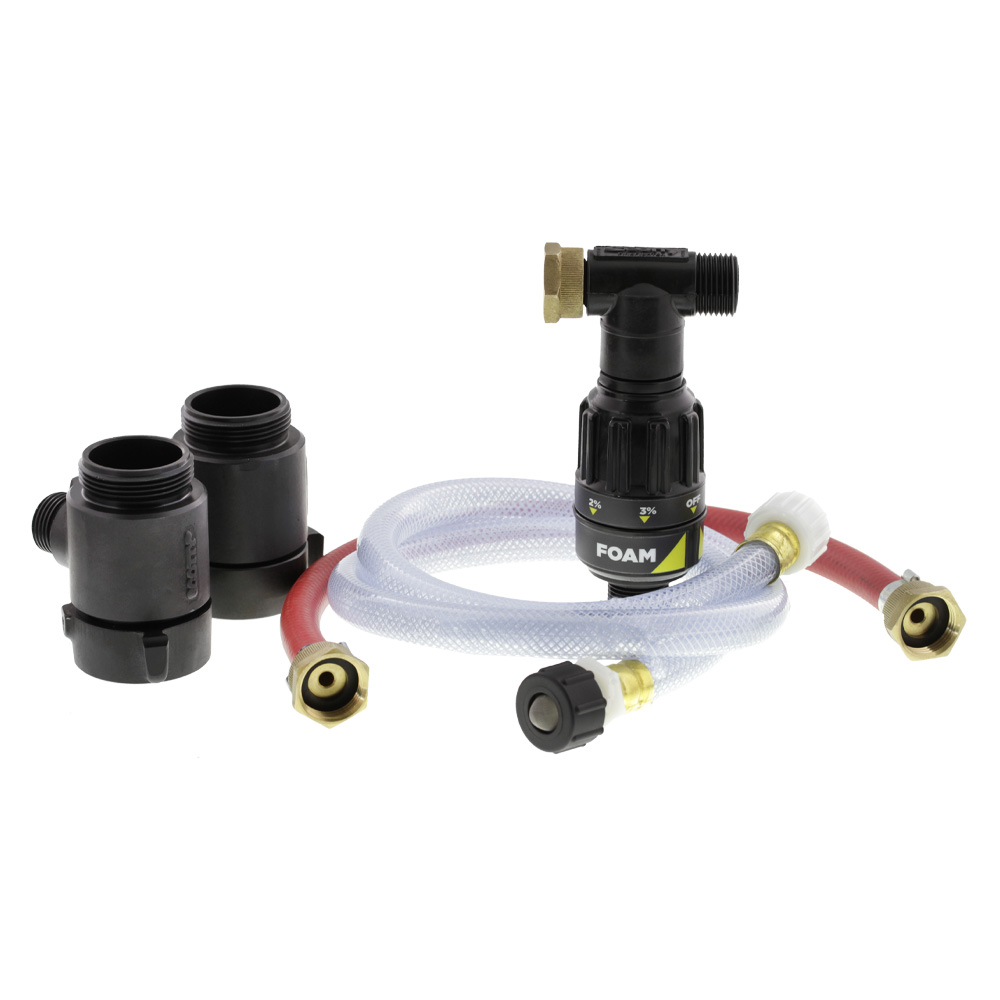

4072-15KIT – 15 GPM Mini Foam Eductor, with pressure & foam pickup hoses & 2 connection tees
4072-30KIT – 30 GPM Mini Foam Eductor, with pressure & foam pickup hoses & 2 connection tees

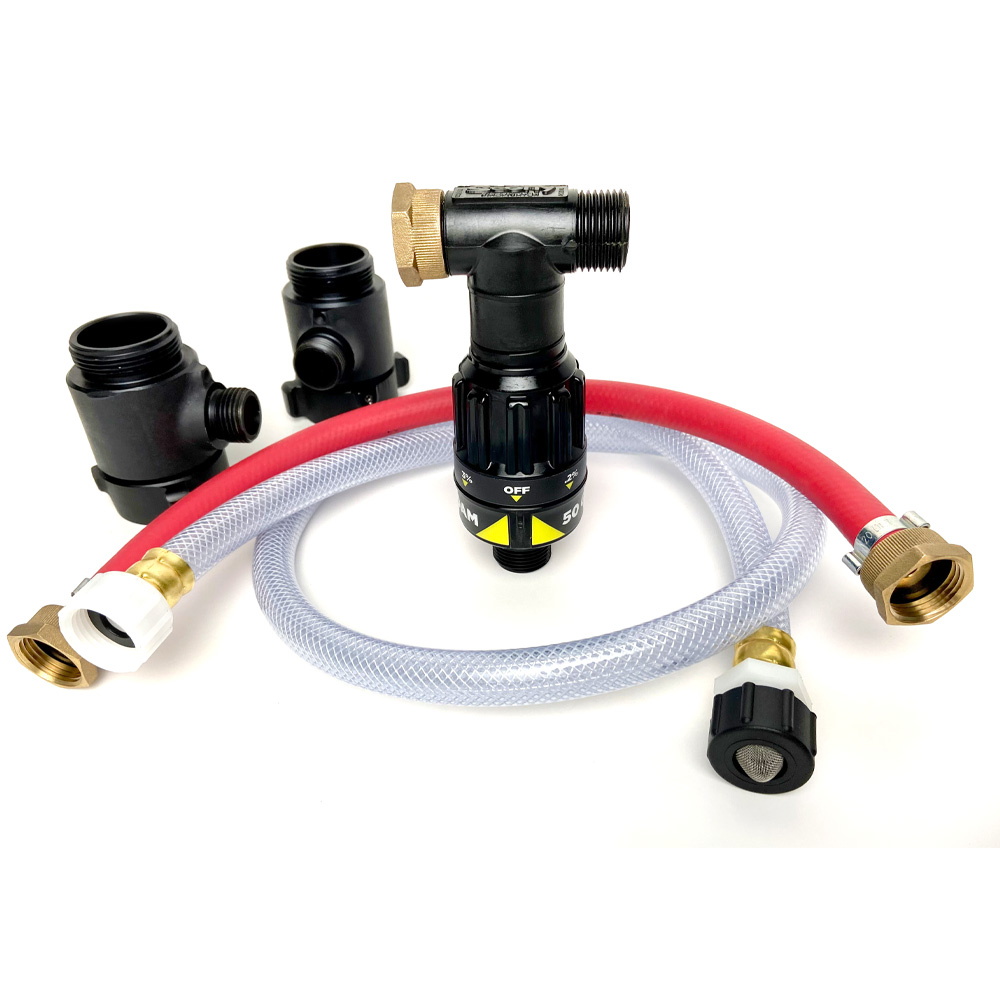

4072-50KIT – 50 GPM Mini Foam Eductor, with pressure & foam pickup hoses & 2 connection tees
4072-70KIT – 70 GPM Mini Foam Eductor, with pressure & foam pickup hoses & 2 connection tees
