Foam Eductors

• Available with variable check valves.
  • 7 settings: OFF, .2%, .5%, .7%, 1%, 2%, and 3%.
• Fits 1 ½” hose lines and are available in 5 flow rates.
• Comes with standard check valve set for a fixed 1% eduction ratio.
• Check valves are available, upon request, for 0.5% or 3% eduction rates.
• Match to Scotty air aspirating nozzles of the same flow rate.
• Can be mounted at the pump or in end-of-the-line position.
• Maximum downstream hose length of 150′ when mounted at the pump.

OTHER INFO:

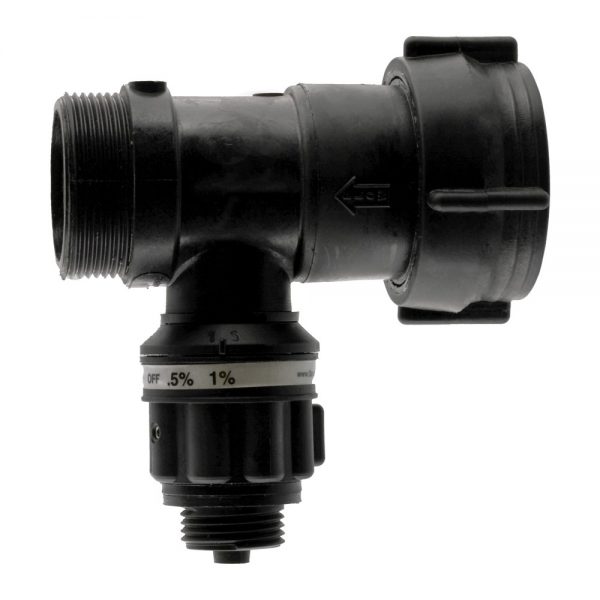

• 4060-15 – 15 GPM Foam Eductor
• 4060-30 – 30 GPM Foam Eductor
• 4060-50 – 50 GPM Foam Eductor
• 4060-15VKIT – 15 GPM Foam Eductor with variable check valve and 4062PICKUP5
• 4060-30VKIT – 30 GPM Foam Eductor with variable check valve and 4062PICKUP5
• 4060-50VKIT – 50 GPM Foam Eductor with variable check valve and 4062PICKUP5
• 4060-70VKIT – 70 GPM Foam Eductor with variable check valve and 4062PICKUP5
• 4060-95VKIT – 95 GPM Foam Eductor with variable check valve and 4062PICKUP5

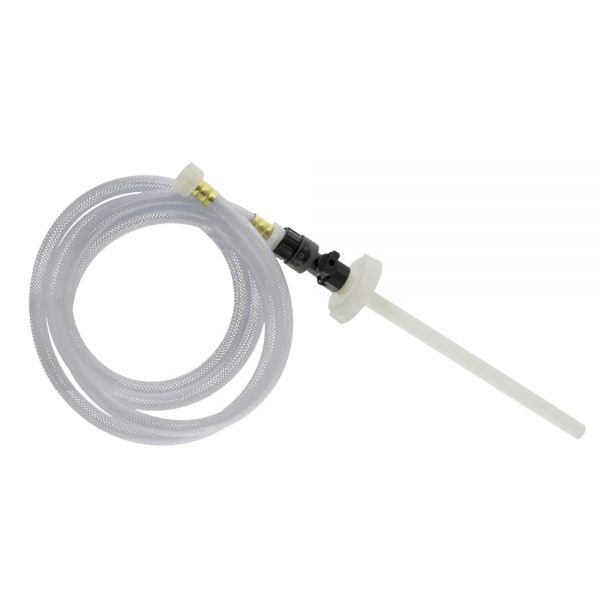

• 4062PICKUP5 – 5 gallon pickup hose system
• 4062SPK18 – 4′ hose with 18″ suction tube pickup hose system

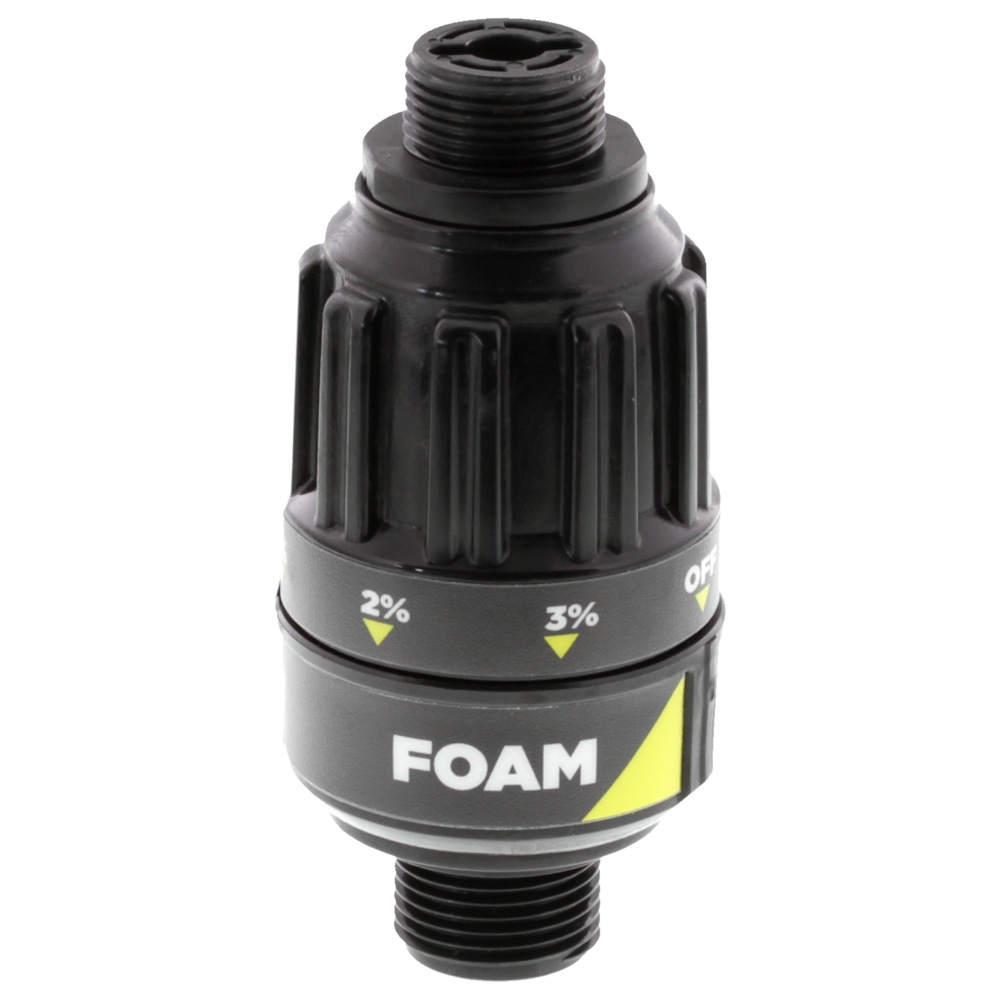

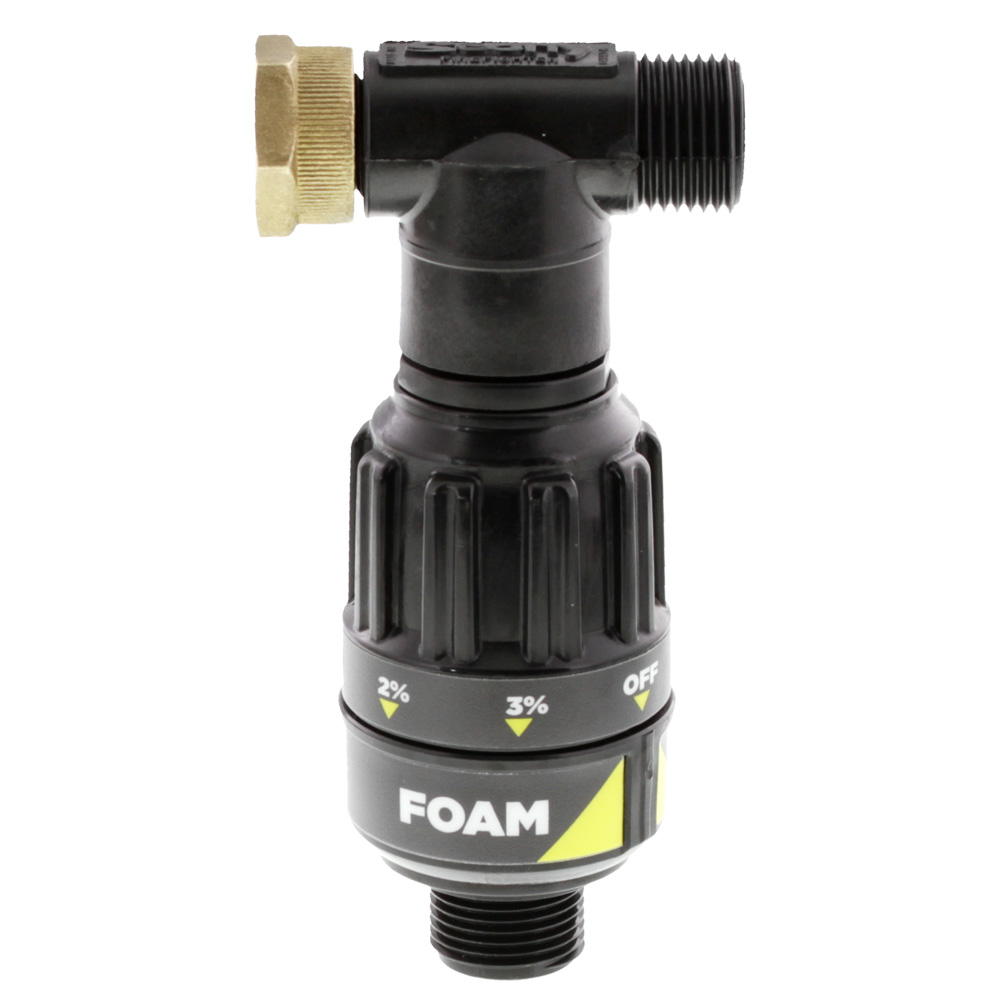

• 4064 – Variable check valve with 3/4″ GHT foam inlet
• 4065 – Variable check valve for use with 4075 jug units
