ATP Foam Eductor and Mixer

  • Educts foam concentrate into hose lines through a pump’s suction and discharge sides, also known as an “Around-The-Pump” (ATP) system.
  • Will educt concentrates at percentages of 0% to 3.75% at flow rates from 15 to 125 GPM at 100 PSI.
  • Maximum operating pressure of 300 PSI.
  • Includes an 18” pressure hose and a 48” foam pickup hose.
  • Use stock code 4171KIT to include one 1 ½” Cast Aluminum Connecting Tee and one 2” Cast Aluminum Connecting Tee.



OTHER INFO:

  • 4171 – Foam eductor with pressure & foam pickup hoses

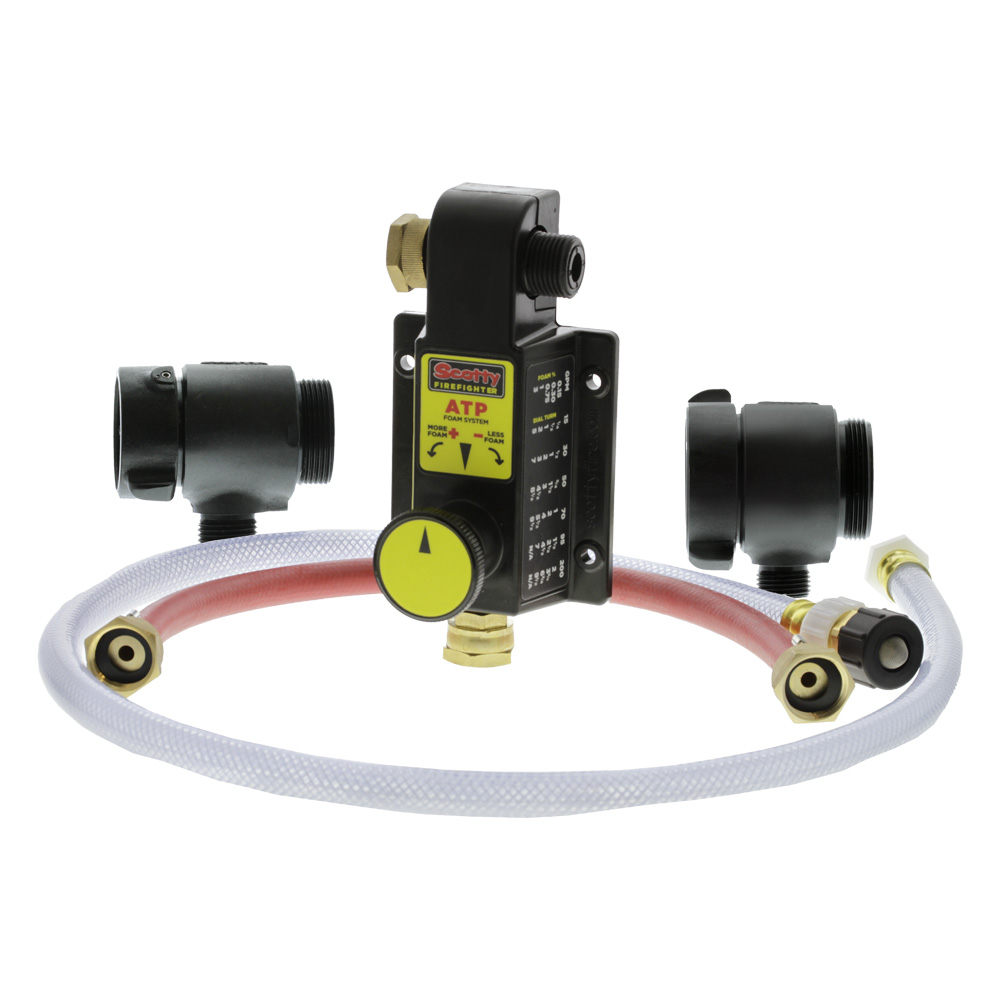

  • 4171KIT – Foam eductor with pressure & foam pickup hoses and 2 connecting tees

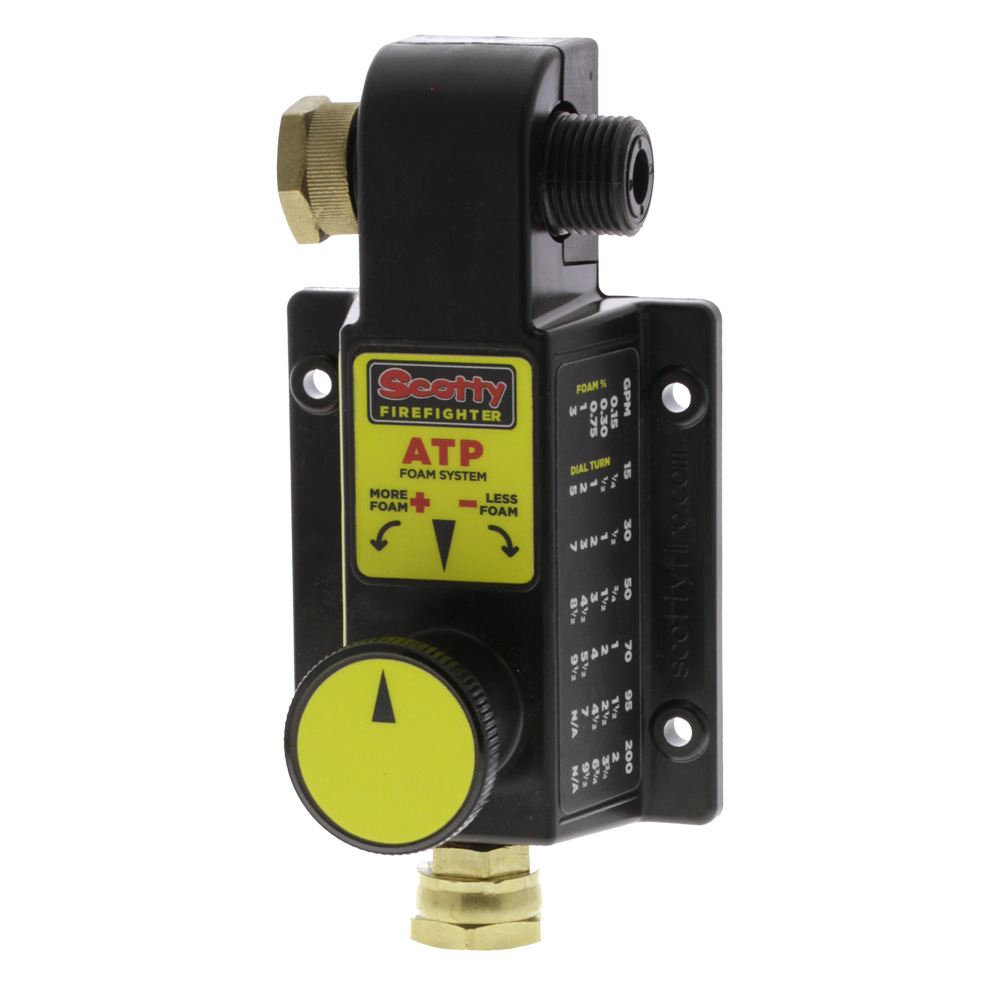

  • 4171-NH – Foam eductor only

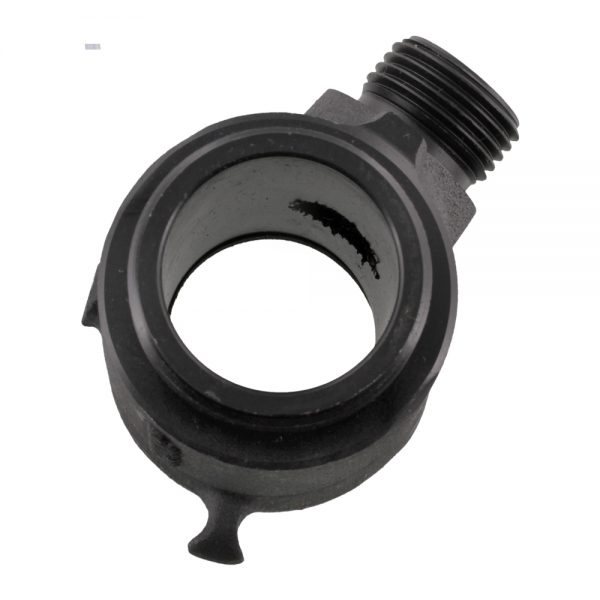

  • 4071T15NPSH – 1.5” NPSH connecting tee
  • 4171PRSHSECON – 18” pressure hose
  • 4071T2NPSH – 2” NPSH connecting tee
  • 4171FOAMHSE – Foam pickup hose
